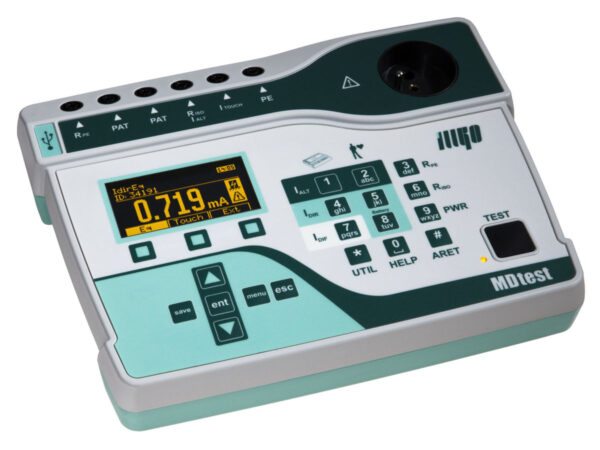

IL2550 – MDtest

Measurement

• Continuity with a current of > 1 A
• Insulation resistance with a voltage of 500 V and 250 V
• Substitute leakage and touch current
• Current through the protective conductor and touch current with L and N wire swapping
• Differential and touch current with L and N wire swapping
• Applied part leakage current of medical electrical equipment
• Leakage currents using a three-phase adapter or clamp meter
• DC components of selected leakage currents by direct method
• Fault (disconnection) simulation of a PE or N conductor for selected leakage currents
• Apparent power / current drawn by the appliance
• Apparent power / current using a clamp meter
• Mains voltage

Other features

• Alternating quantities are measured using the TRMS method
• Measurement of selected quantities in isolated networks (IT)
• Possibility to connect additional measuring devices: three-phase adapters, clamp meters, etc.
• Graphic OLED display (easy to read in different lighting conditions)
• Up to 4,000 appliancecan be stored in the internal memory
• USB connector for connecting a barcode reader or RFID chip reader
• Data transfer to PC via USB cable
• "Help" function available directly in the device

The device is equipped with a number of control and safety functions

• Checking the PE pin connection in the power socket before starting the measurement
• Checking for dangerous touch voltage on the PE pin in the power socket before starting the measurement
• Checking the amount of leakage current during measurement
• Checking the amount of electrical current drawn from the power socket
• Manual test of the correct device function (AUTOTEST)

To increase work productivity and efficiency MDtest device together with its PC software ILLKO Studio is equipped by the appliance database management feature:

• Appliance identification using an ID code (barcode)
• Possibility to transfer the appliance database or selected database parts from PC to MDtest
• Possibility to update the appliance database from the MDtest to PC
• Possibility to use automatic workflows during testing
• Manual evaluation of the inspection results directly in the device
• Possibility to individually modify inspection result forms in PC

Package content

• MDtest measuring device
• ILLKO Studio PC software license (the license is loaded in the device)
• P2011 - safety connecting cable (banana/banana), black, length 2 m
• P3011 - safety measuring tip, black
• USB cable
• User´s manual
• Calibration certificate
• Warranty card

Note: According to the customer's wishes, the device can be modified with a different socket and power cord (e.g. Germany, UK, Brazil, Israel, etc.). Modification is possible also for different mains voltage (100 - 140 V / 60 Hz).
